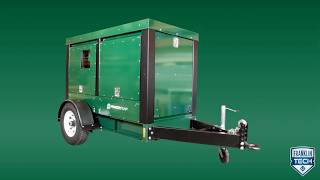

Enclosed Diesel Pump Packages

Diesel & Electric Pump Packages & Systems

Enclosed Diesel Pump Packages

Pionner Pump offers a comprehensive range of sound attenuated diesel-driven pump packages for fixed and portable installations. These packages are fully enclosured to be compliant with municipal noise and safetly regulations, so these packages are built for remote mines or bustling metropolitans. Available with vacuum-assisted priming, self-priming and standard centrifugal pump ends and in sizes up to 8 inches for standard part numbers, Pioneer centrifugal pumps are designed to provide better flow, higher head and greater efficiency to meet your unique challenges.



FE_Select_Logo_Tagline_BLK.psd

Available on FE Select

Size. Configure. Quote. Input your performance requirements or specs, and our industry-leading online tool will help you find the right Franklin Electric product for the job.

Size with FE Select US  |  Size with FE Select CAN

Overview


Features & Benefits

  • Modular enclosure with sound-reduction materials
  • Lockable enclosure doors and pad-lockable interface window
  • Indefinite run-dry capability
  • Extreme flow technology
  • Environmentally safe priming system: Pioneer Prime
  • Auto-start controls

Order Information


Enclosed Diesel Pump Packages

Item Suction Discharge Impeller Dia. Engine Model Fuel Tank Rated HP
44S10-PPI-02-D 4 " 4 " 10 " / 254 mm D2.9L4 75 gal / 283.91 L 36 HP
44S10-PPI-02-P 4 " 4 " 10 " / 254 mm 404F-E22T 75 gal / 283.91 L 38 HP
66S12-PPI-02-D 6 " 6 " 11 " / 279 mm TD2.9L4 75 gal / 283.91 L 59 HP
66S12-PPI-02-P 6 " 6 " 11 " / 279 mm 404J-E22TA 75 gal / 283.91 L 54 HP
88S12-PPI-02-D 8 " 8 " 12.25 " / 311 mm TCD3.6L4 135 gal / 511.03 L 111 HP
